Cameras

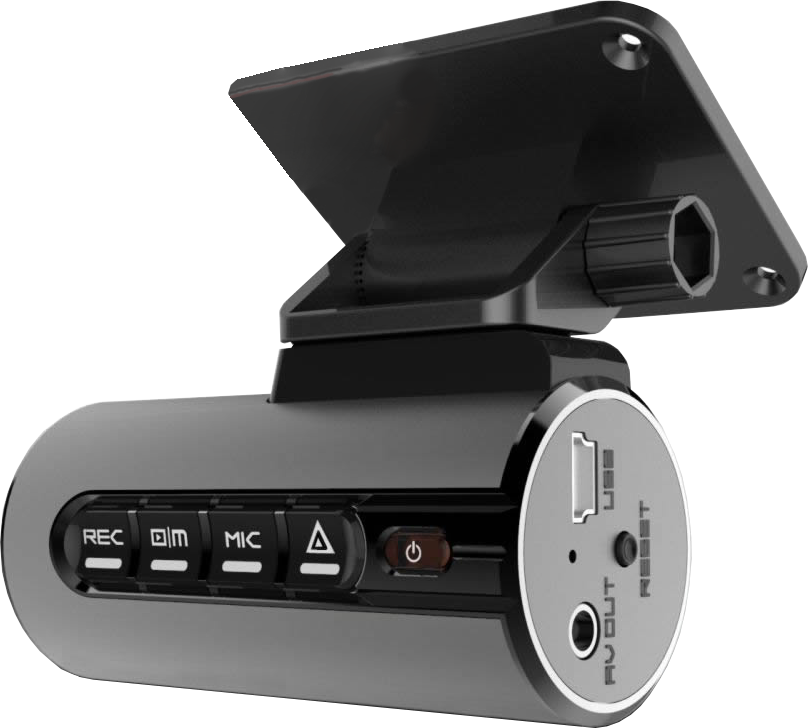

EC1000

Features

• Two channel camera video recording supported
• CMOS 1.3M pixels, 142.5* / CCD VGA, 130*
• AV-out display for both real-time and back-up video files
• High-quality GPS module and 3D G-sensor module built-in
• Exclusive multifunctional player - (file encoding, reporting, video settings and so on)
• SD card error monitoring function - (rebooting)
• Power control pack supported for a park vehicle surveillance

---

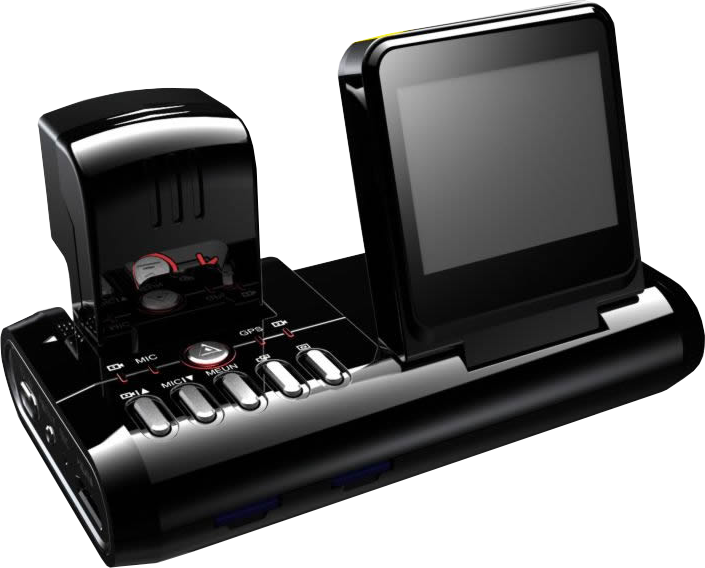

ECS 1

Features

• D1 720p
• camera sentor: 2.0 mega pixels CMOS
• Lens: HD 120 degrees Wide angle Lens
• Efficient Pixel:1280*720
• Video Format: MOV
• Display format: 2.0inches HD screen
• Image Format: JPEG
• camera Resolution: 2048*1536
• Frame Rate: 30fps be interpolated to 60fps
• Collision Sentor: three axis stereo collision detection
• Record format: AVI format, loop video recording
• Recording Disontinuity:50ms
• memorizer:support double TF memory card (512mb-64gb)
• interface: USB2.0 AV OUT
• HD output interface: HDMI
• Chatting Video: IP CMOS
• Mobile Disk: U Disk
• Starting Time: 565
• operating voltage: DC 5V
• operating Current:5440mA
• quiescebt Current:s100uA
• Storage temperature('c): (0'c-60'c)
• operating tempeature ('c): ( 0'c-60'c )
• operating Humidity(RH):15%-60%(RH)
• battery type: external lithum batteries 1000MAH

• port virtual camera
• video sensor: 3.0mega-pixles wide dynamic range CMO
• Lens: 120 degrees wide angle lens
• efficient pixel: 720*480
• Video Format: MOV
• Image format: JPEG
• Camera Resolution:1600*1200
• Frame Rate:30fps be interpolated to 60fps
• recording format: MOV format Loop video recording
• recording discontinity: 50ms
• Automatically detection interface: AV IN
• standard configuration: Specification, Disk,Dual USB vehicle charger plus 4M line

---

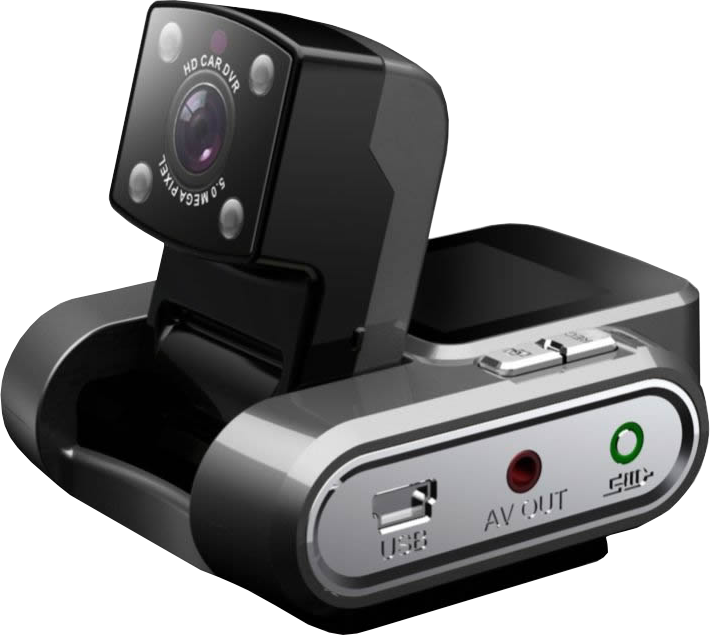

ECS 2

Features

• 720p
• Colour: available colors
• Category: driving Recorder
• Camera sensor: 1.0 mega-pixels
• viewing angel of lens: 100 degrees
• Video Quality: HD (1280*720) 30 fps
• Display Screen: 1.44 inches
• image format: JPEG
• Camera resolution: HD 4032*3024
• Motion detection: supported
• Night Vision: supported
• Sensor positive and reversed phase: supported
• G-sensor:supported
• automatically overwritten: supported
• Loop video recording:supported
• Audio Recording: synchronously Video Recording Support
• playback: supported
• internet camera:supported
• Functions of U-disk: supported
• storage temperature: (0'c-60'c )
• operating temperature( 0'c-60'c)
• operating humidity 15%-6-% RH
• installation: support for optional mounting
• Type of memory card: TF card
• Capacity of memory card: 32g to maximum
• battery type:250ma lithium polymer battery
• lasting time for videos: 2hours
• power consumption: 150ma - 260ma
• Standard input voltage: Dc5V
• charging: car charger, USB charging, power line charging
• power interface: car charger

---

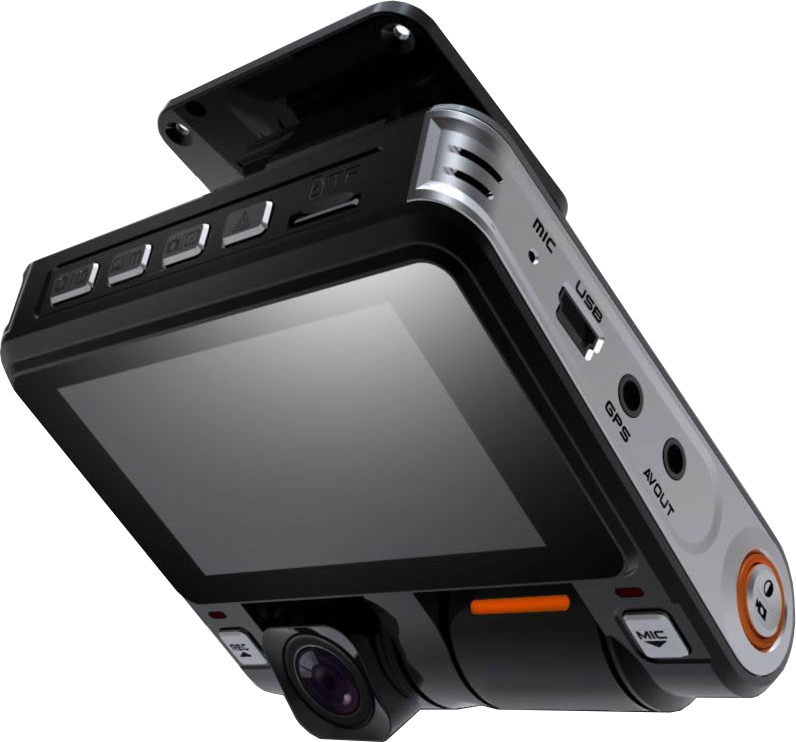

ECS 3

Features

• 720p
• CPU: NT96632
• Camera Sensor: 5.0mega-pixels
• viewing angle of lens: 170 degrees
• video quality: 1280*720
• image format: AVI
• display screen: 3.0 inches HD screen
• photo format:JPEG
• photo resolution:3m/5m/8m/12m
• frame rate: 30f/s
• collision sensor:three axis stereo collision detection
• record format AVI format loop video recording
• recording discontinuity: 0ms
• memorizer: support TF memory card (2mb-32gb)
• interface: USB2.0 AV out
• HD output interface: HDMI
• Chatting video: network CMOS
• Removable Disk: U disk
• starting time: 45
• operating voltage DC 5V
• operating current: 450mA
• quiescebt Current: 120uA
• storage temperature('c): ( 0'c-60'c )
• operating temperature('c):( -20'c-60'c )
• operating humidity(RH):15%-60%RH
• Battery:built-in 800mA Li-on battery

---

ECS 4

Features

• D1 720p
• host controller: NT96220
• Camera sensor: 1.0 mega-[ixels CMOS
• Lens: HD 120 degrees wide angle lens
• efficient pixel: 1280*720
• interpolation pixel:1080p
• Video format: AVI
• display: HD 1.5inches display
• image format: JPEG
• camera resolution: 5M
• frame rate:( 1080P/25f )( /720p/30f )
• collision sensor: three axis stereo collision detection
• record format: AVI format,Loop Video recording
• recording discontinuity: 0ms
• memorizer: TF card 2gb-32gb
• interface USB2.0 AV OUT
• chatting video: IP CMOS
• mobile disk:U-disk
• starting disk-6S
• operating voltage: DC 5V
• operating current: 230mA
• quiescebt Current:80uA
• storage temperature('c):( -20'c-6-'c )
• operating temperature('c):( 0'c-60'c )
• operating humidity(RH): 15%-60%RH
• Battery Polymer battery:180mAH

---

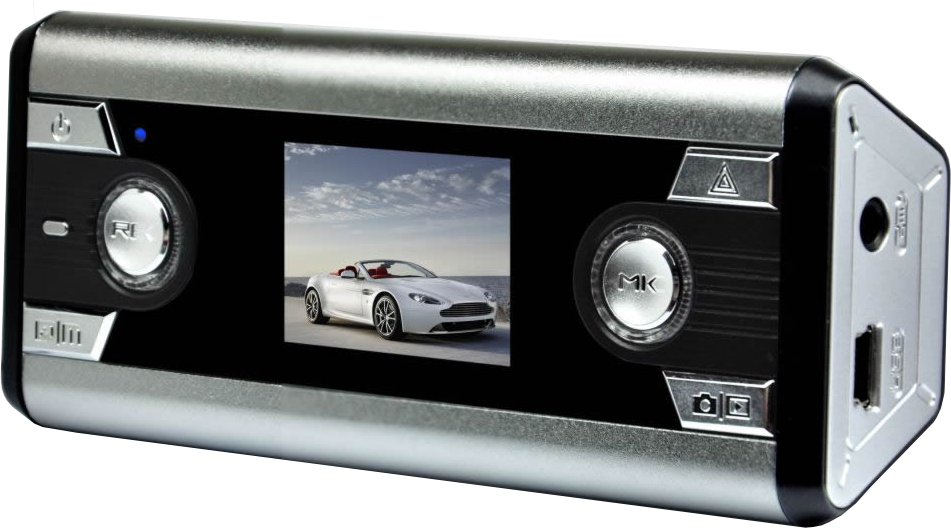

ECS 5

Features

• 1080p
• Host controller: A2560
• Camera sensor: 5.0 mega-pixels CMOS
• Lens: HD 120 degrees wide angle lens
• efficient pixel: Fully HD/1080p0/720p30 WVGAP60/VGA
• Video Format:MOV
• display: HD 1.5nches
• Image Format: JPEG
• camera resolution: 12m/8m/5m/3m
• frame rate: 30fps/60fps
• collision sense: three-axis stereo collision detection
• record format: Mov format, loop video recording
• recording discontinuity:0ms
• Memorizer: TF card 2gb-32gb
• interface: USB2.0 AV OUT
• GPS locus: GPS locus-IN
• Chatting Video IP CMOS
• Mobile disk: u-disk
• Starting timer:4S
• operating voltage: DC 5V
• operating current: 450mA
• quiescebt current: 120uA
• storage temperature: (-20'c-60'c)
• operating temperature: (0'c - 60'c)
• operating humidity(RH): 15%-60%RH
• Battery:polymer battery 500mAH

---

ECS 6

Features

• 1080p
• Host controller: A2560
• Category: driving Recorder
• Camera sensor: 5.0 mega-pixels CMOS
• Lens: HD 120 degrees wide angle lens
• efficient pixel: Fully HD/1080030/720p30 WVGAP60/VGA
• Video Format:MOV
• display: HD 2.7 inches
• Image Format: JPEG
• camera resolution: 12m/8m/5m/3m
• frame rate: 30fps/60fps
• collision sense: three-axis stereo collision detection
• record format: Mov format,, loop video recording
• recording discontinuity:0ms
• Memorizer: TF card 2gb-32gb
• interface: USB2.0 AV OUT
• GPS locus: GPS locus-IN
• Chatting Video IP CMOS
• Mobile disk: u-disk
• Starting timer:4S
• operating voltage: DC 5V
• operating current: 450mA
• quiescebt current: 120uA
• storage temperature: (-20'c-60'c)
• operating temperature: (0'c - 60'c)
• operating humidity(RH): 15%-60%RH
• Battery:polymer battery 500mAH

---

ECS 7

Features

• 720p
• functions and characteristics
• Automatically start recording when ignition on, turn off shut-down
• Built in collision detection, three-axis stereo real-time monitoring collision, start collision recording when emergency occurs (this file will not be covered)
• Automatically loop and overwritten video or photo
• synchronously output video AV to TV, mobile vehicle- mounted DVD, central control station
• Manually switch ON/OFF video recording temporarily
• Camera Manually
• Manually lock emergency collision video temporarily
• Switch On/OFF audio manually
• Store mute automatically
• Switch ON/OFF night vision manually/ close automatically
• Switch ON/OFF motion detection Manually
• 180 degrees rotate pros and cons manually display video
• 180 degrees rotate pros and cons to display screen manually
• playback videos and photos at any time
• electromagnetic proofing mask to avoid interfering GPS signals
• High Definition wide dynamic range device with no deformation, clear image without smear
• Built in plastic single fastening base
• built in lithium battery power protection

---

EC800

Features

• Unique design with lock to protect from illegal accessing;
• H.264 main profile Video compression format;
• Can work with power supply ranging from DC8V to DC36V;
• Supports Manual Record, Motion Detect and scheduled Record;
• Video resolution: D1/HD1/CIF/QCIF selectable for each channel; frame rate: 1-25fps (PAL) or 1-30fps (NTSC) for each channel;
• Supports 4 channels "Video & Audio" recording and playback simultaneously;
• Supports 4 "alarm input" 1 "alarm output";
• Video clips can be saved onto either SD card or HDD; Supports SD card up to 32GB and hard disk up to 2TB;
• Video file can be backed up in format H.264 or AVI;
• Supports VGA high definition video/audio output;
• Supports Mouse & IR remote control for easy operation;
• Can work with 4 cameras simultaneously, and power all 4 cameras directly;
• With GPS function, records video with GPS data and shows the location when playing the records;
• With 3G module, Support remote view
• Multiple language options, covers almost all main languages all over the world

---

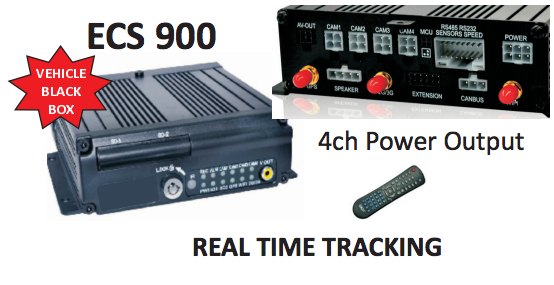

EC900

Features

• Operation System: Linux
• Compression: H.264
• Signal System: PAL:25 fps, NTSC:30 fps
• Language: Chinese / English optional, OSD Menu
• Display Frame Rate: D1/HD1/CIF optional. 4CIF 25fps,4HD1 25fps,2D1@25fps+25fps @ @
• Video Input/ Output: 4-CH Input /1CH Output
• Audio Input/Output: 4-CH Input /1CH Output
• Alarm Input/Output: 6 alarm input / 2Output
• Recording: Manual Schedule Motion Detection ? ?
  GPS Vehicle tracking, Speed detection, Synch time
  Event Sensor trigger, Speeding, Accelerometer, Temperature, Video Loss
• Playing Mode: Support 1 channel or synchronous 4 channels By PC
• SearchMode: By Time/ By Date/ By Event
• Storage: Support single/Dual SD card selectable, 32GB for each. 64GB for Total.
• Built Model: G-SENSOR
  GPS
• Remote Control: IR Remote Control
• Software Upgrade: SD Card
• Power Input/Output: 8—36V Input,12V Output

---

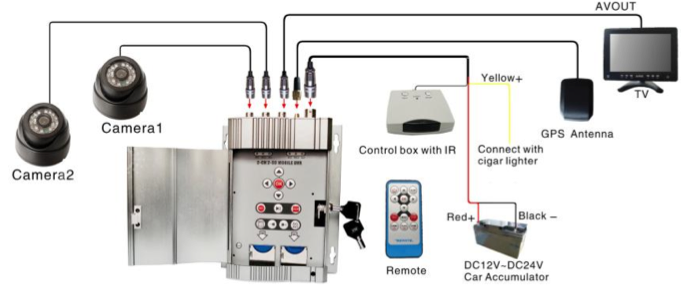

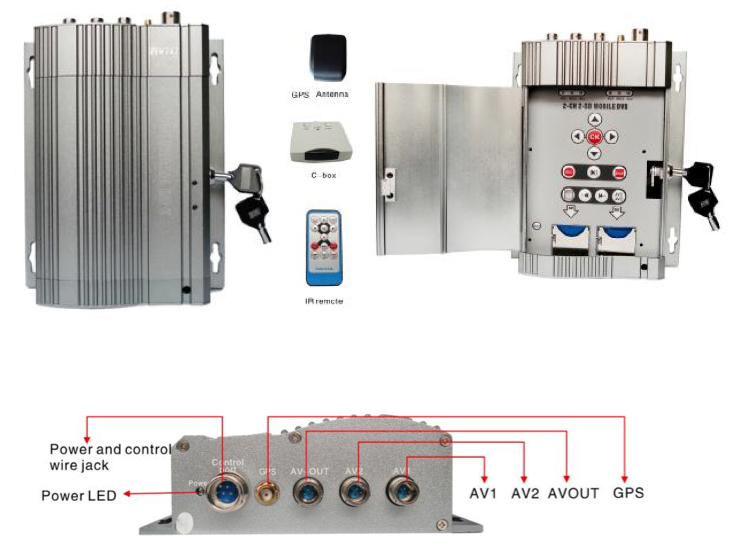

EC400

Features

• 1. 3 Recording Modes (Manual Record, Motion Detection and scheduled Record.)
• 2. 2 Channel Audio & Video recording simultaneously.
• 3. Adjustable Pre-record Feature (5 or 10 second pre-record options make sure you never miss a moment!)
• 4. Boot Recording (Allows instant recording from power up in an emergency.)
• 5. High Resolution D1 Recording (720*480@30FPS for amazing quality!)
• 6. Dual 32GB SD Card Supported (With automatic overwrite function.)
• 7. Footage Date/Time/GPS Stamping (With date, time and GPS details stamped on the recorded files.)
• 8. NTSC and PAL Compatible (Works with both PAL and NTSC TV standards.)
• 9. Easy Menu System (Easy to setup, operate and maintain.)
• 10. Multiple Language Options (English, Portuguese and Chinese optional.)
• 11. IR Remote Control Supported (IR remote with extended IR receiver.)
• 12. Advanced Encryption Technique (The NEW MV757 not only packed with GPS function, but also with Encryption function: all recorded video clips from MV757 will have 2 passwords, and you will be only able to play the video on your computer by using our special player and entering the right passwords. No one can access the recorded files if they don't know the passwords and have the special player!!!!)
• 13. Advanced logging Technique (Every time you play the video clip, our software will take notes of what files you played, and when you played.)
• 14. CE, FCC & Rohs Certificated (See pictures on Page 6.)
• 15. Approved by New Zealand Government (Our MV757 DVR has been approved by the New Zealand government as in-vehicle security camera systems for the purpose of the Land Transport Rule: Operator Licensing 2007. Please check http://www.nzta.govt.nz/commercial/passenger/driving.html for your reference.)

---

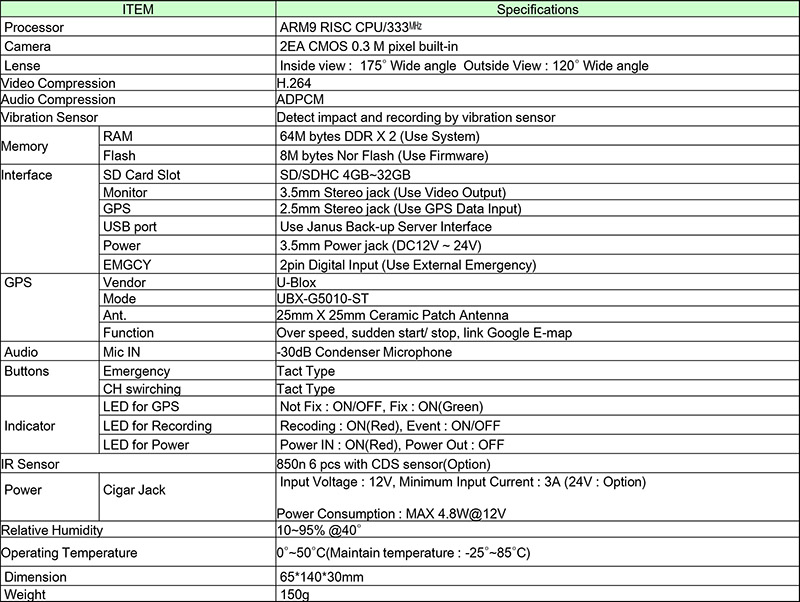

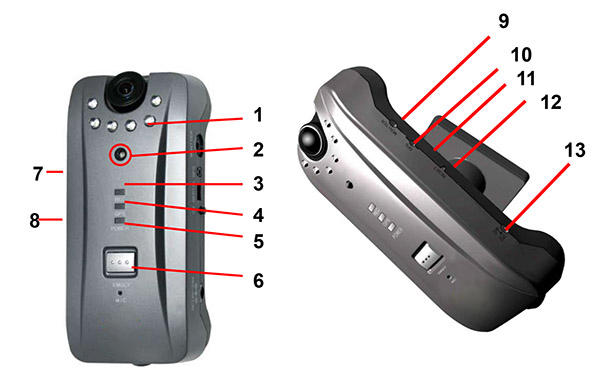

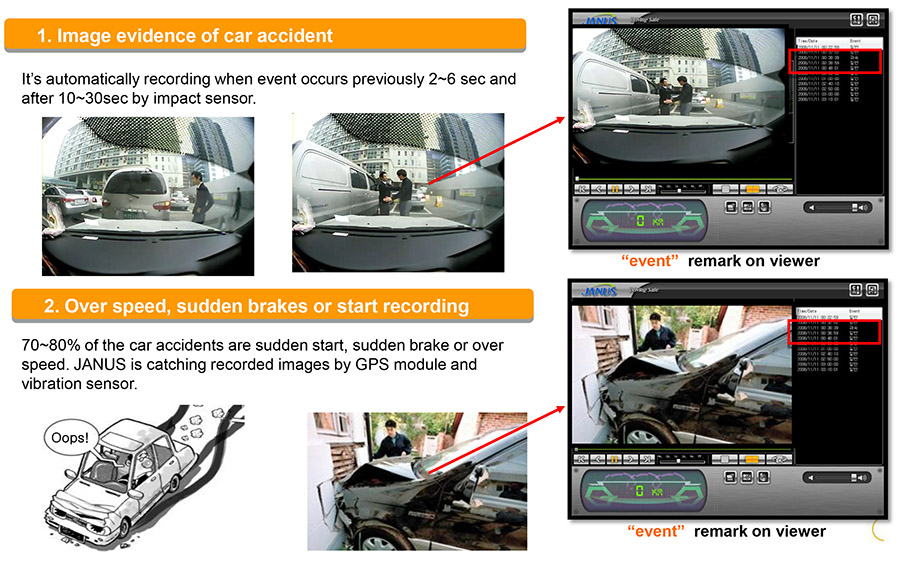

EC300

Features

1. IR Led
2. CDS Sensor
3. Recording Led
4. GPS LED
5. Power LED
6. Emergency Button
7. SDHC Memory Card Insert
8. Emergency Cable Connection
9. Monitor Connection
10. GPS Connection
11. USB Port
12. Channel Switch Button
13. Power Cable Connection

---

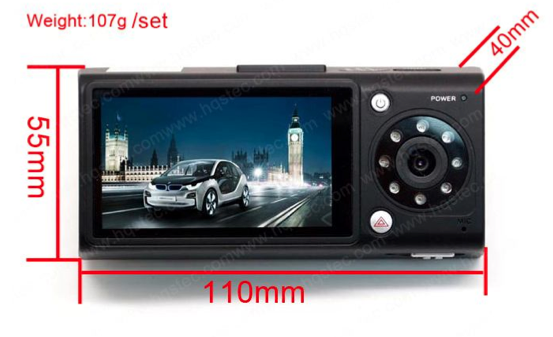

EC200

Features

• The First car DVR integrated 3 cameras to monitor front, back and inside;combing grade A high resolution with 120 degree lens
• Video record, Photo shoot, Playback
• 3D auto G-sensor
• 2.7inch TFT LCD
• Video Resolution: 1280x720, 720x490, 30FPS
• MOV video format, H.264 compression
• Built-in Lithium battery,recording during charge
• Urgent video recording function(locking)
• Super-bright fill light
• Built-in microphone
• Support high capacity TF card

---

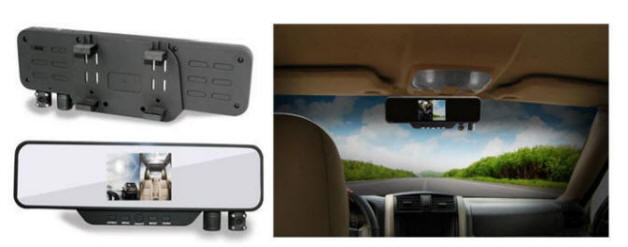

EC950

Features

• 3.5" TFT LCD high-definition display
• Infrared night vision
• Loop recording function
• Video file time can be set according to personal needs
• Connect the car charger, automatically loop video
• HDMI output

---

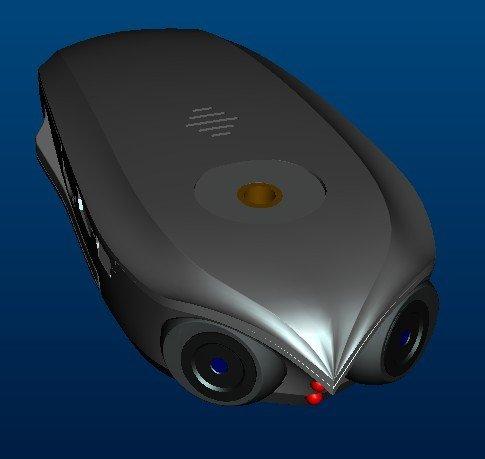

ECS10

Features

---

ECSFLOWER

Features

• Certification: CE
• Image Sensor: 12.0 Mega Super HAD Color CMOS
• CPU: Ambarella Video
• Resolution: 1920*1080 1080 Full HD
• View Angle: 120 Degree
• Qty of IR LED: 7
• Bluetooth-handsfree: Yes
• MP3 Player: Yes,via bluetooth to play the music in your mobile phone
• Motion Detection: Yes
• Cycle Recording: Yes
• Storage Medium: Max 32GB TF Card

---

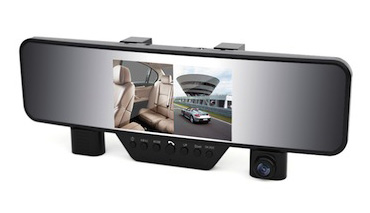

ECS12E

Features

• HD 720P video loop recording
• 4.3" super HD TFT LCD screen
• HD Megapixel sensor with 2.0 megapixel lens
• Cyclical recording with maximum 32GB TF card
• Gravity acceleration monitoring design
• AV-IN/G-Sensor/GPS tracker/Bluetooth IEEE802.15
• Built-in Lithium battery
• Built-in microphone and speaker
• ABS plastics outer skin design
• Top grade texture design
• Exclusive anti-dazzle design
• Ultra-thin mirror design
• Ultra-wide screen design
• Screen dormancy design
• High capacity battery design
• Super energy saving design
• Vibration automatic save design

---

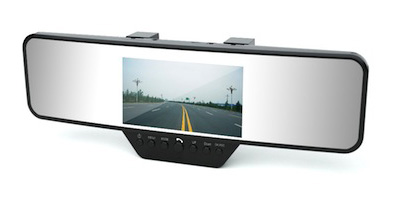

ECS12

Features

• HD 720P video loop recording
• 4.3" super HD TFT LCD screen
• Dual lens panoramic design
• Ultra-thin mirror design
• Cyclical recording with maximum 32GB TF card
• Gravity acceleration monitoring design
• AV output and USB2.0 output
• Built-in Lithium battery
• Built-in microphone and speaker
• ABS plastics outer skin design
• Top grade texture design
• Exclusive anti-dazzle design
• Ultra-wide screen design
• Screen dormancy design
• High capacity battery design
• Super energy saving design
